Dairy farm milking machine cow milking parlor for sale
Introduction of this type milking parlor:
1. 9JY series automatic milking parlor could be used in big farm.
2. It can milk 10-40 cows at a time.
3. Improved the milking efficiency.
4. Meanwhile, the fresh milk more clean than manual milking.
It include the following functions:
1. Recycling Residual Milk System:
After finished milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve,
which decreased bacteria and saved labor, water and electricity and increased income.
This system is our unique advantage from other factories.

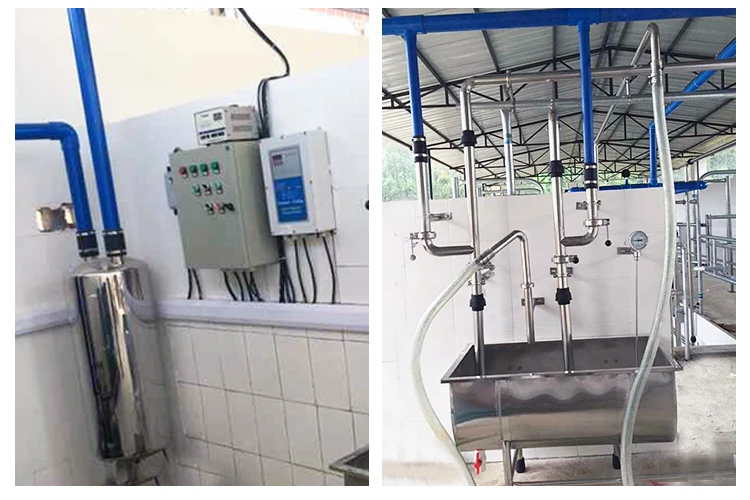

2. Half-automatic cleaning system:
After recycling the milk, add Acid&Alkali Cleaning Solution by human and washing the milking parlor (water flow).
3. Common Cow Exit Canopy Frame:
All cows enter the frame through one exit, after milking, all cows out through another exit one by one.
Technical Parameters:
| | 9JY-2*4 | 9JY-2*8 | 9JY-2*12 | 9JY-2*16 | 9JY-2*20 |
| Working Vacuum | 50Kpa | 50Kpa | 50Kpa | 50Kpa | 50Kpa |
| Pulsation Ratio | 60/40 | 60/40 | 60/40 | 60/40 | 60/40 |
| Frequency | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM | 60 ± 3 RPM |
| Vacuum pump power | 4 KW | 5.5 KW | 2*4 KW | 2*4 KW | 2*5.5 KW |
| Vacuum pump speed | 1200L/min | 2300L/min | 2*1400L/min | 2*1400L/min | 2*2300L/min |
| Milk pump speed | 8T/h | 8T/h | 20T/h | 20T/h | 20T/h |
| Milk pump power | 2KW | 2.2KW | 4KW | 4KW | 4KW |
Other quantity of heads could also be made according to your actual requirements.
Milk metering bottle material: high-boron extra-hard glass, high transparency, intuitive milk volume. The single and double scales are obvious, accurate, double-line single-sided scale, Kg line and L line coexist to facilitate measurement calculation. Suitable for hot and cold cleaning, preventing hot and cold bursting. It is suitable for corresponding vacuum requirements and prevents vacuum bursting. There are 3 outlets, and each outlet is fully matched with the corresponding connector. The metering bottle is intuitive, accurate, and has the characteristics of small error. The scale line is baked with acid and alkali resistant materials and will not fall off.
